Description
True RMS Average Power Sensor+™ with Triggering 1 MHz to 9 GHz

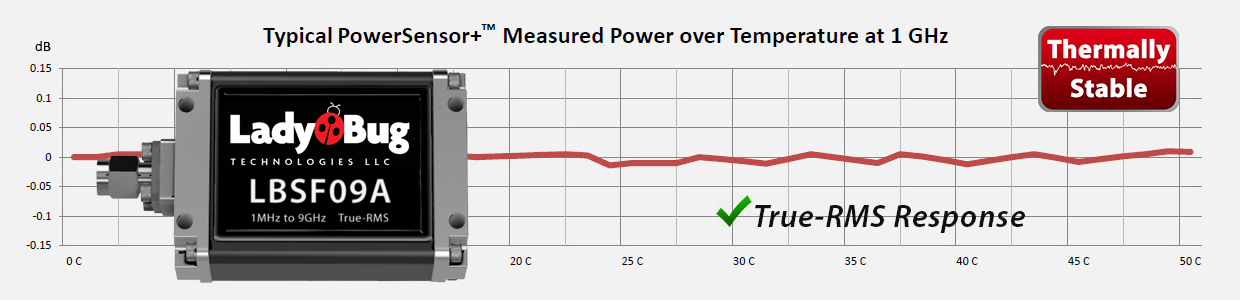

The LBSF09A True RMS, high sensitivity, high accuracy RF & microwave power sensor has frequency coverage from 1MHz to 9GHz and an 83dB dynamic range making ideal for EMC applications, general purpose average power and scalar measurements. The sensor features a fast measurement speed, a broad dynamic range, and the widest set of options for programmatic and embedded applications in the industry. The sensor is useful in research & development, manufacturing & service applications including radar, satellite, and telecommunications.
LadyBug’s PMA-12 Power Meter Software is included with each sensor. The software provides full control of the sensor’s functions from basic setup to triggering, logging, offset tables, and more. The software package also includes an Interactive IO program with the capability of sending SCPI commands and queries to the sensor, aiding in system development.
* Note: Connections for Triggering, Option SPI, and Option 001 (Analog Recorder Out) are available through the USB-C connector or an optional module (Recommended).
Recommended for average power measurements on signals of any modulation type including 802.11ac, gsm, CDMA 2000, CDMA (IS-95), TDMA, Multi-Tone, OFDM, CW, QAM, and more.
Highlights
- Converge from 1 MHz to 9 GHz
- Accurate power measurements on any modulated signal
- Dynamic Range -60 dBm to +23 dBm
- Includes External Triggering (requires interface module)
- Just Measure – Patented NoZero NoCal before use technology
- 3-Year warranty & 1-year cal cycle
- A variety of options such as Security Options & Analog outputs
- Standard interfaces USBTMC and USBHID
- SPI and I2C interfaces for ATE, direct control & embedded applications
- SCPI command set through all three interfaces

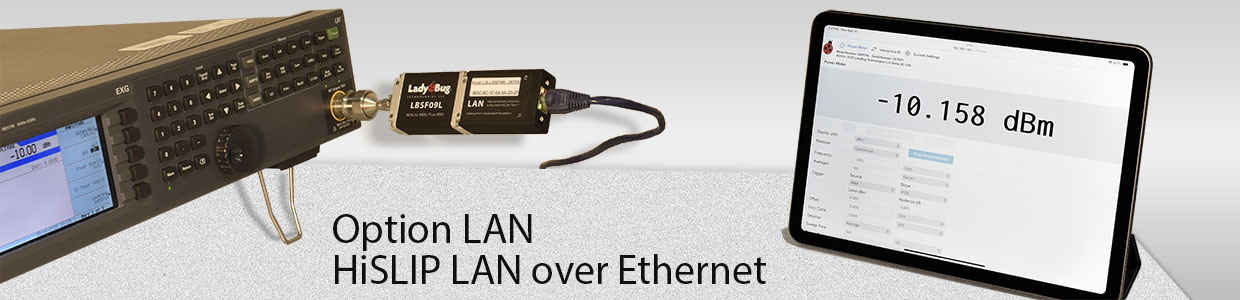

Information, Options & Connectors
- Step Files (All Connectors)
- Type N Male – ONM
- SMA Male – OSM
- SMA Female – OSF
- Type N Female – ONF
- 3.5mm Male – 35M
- Analog Recorder Output – Opt. 001
- SPI and I2C Ports – Opt. SPI
- 3 Year Calibration Service – Opt. C03
